Suspension System
Armstrong Prelude XL 32H 24mm Flat FACE

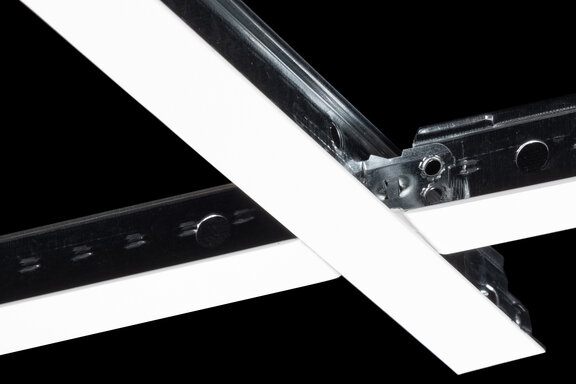

Prelude 32 XL² suspension system is exposed 24mm "tee" grid,suitable for square edge and tegular edge ceiling panels.

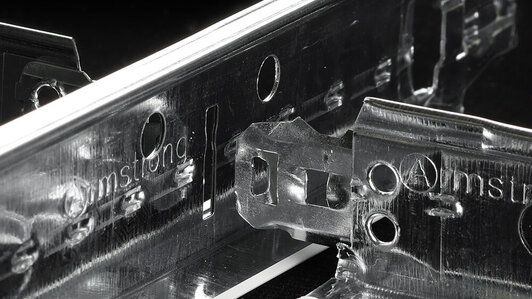

- - Staked-on Clip Cross Tee
- - Rotary-stitched
Details & Options
Main Beam Flat Faced 24mm Tee
Cross Tee Flat Faced 24mm Tee
Main Beam Flat Faced 24mm Tee 32H
Cross Tee Flat Faced 24mm Tee 27H
Cross Tee Flat Faced 24mm Tee 25H
Prelude XL 32H 24mm Flat FACE system
Main Beam Flat Faced 24mm Tee
Cross Tee Flat Faced 24mm Tee
Angle molding
Systems
Technical Specifications
Features
- Hot dipped galvanized coating offers superior protection against red rusting painted or plated process
- Rotary-stitched during manufacture by a patented method for additional torsional strength and extra stability during installation
- Tighter tee to tee connection of XL Cross Tee
- Easy to remove and relocate
Application Areas
- Offices/Hospitality/Schools/Retails/Entertainment
Physical data
- Material:Double-web hot dipped galvanized
Performance
Loading
8.12 kg/m,LD
Recycled Content
25%
Cleaning
Dry Cloth
