Suspension System
Armstrong PeakForm SUPRAFINE XL
PeakForm SUPRAFINE15 XL² suspension system a refined narrow profile,exposed 15mm "tee" grid,suitable for tegular edge ceiling panels.
- - Staked-on Clip Cross Tee
- - Main Beam ID (19.76kg/m)
- - 43mm Main Beam Peakform
- - Superlock main beam clip
- - Rotary-stitched
Details & Options

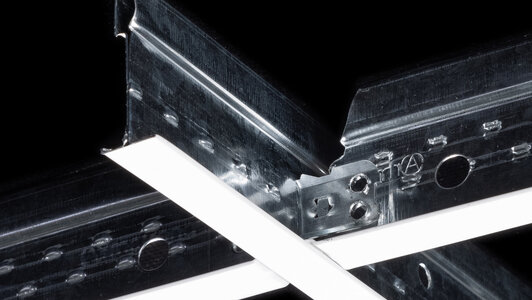

PeakForm SUPRAFINE 43mm Main Beam/Cross Tee

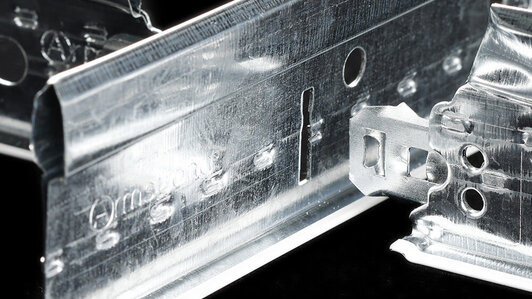

PeakForm SUPRAFINE XL 15mm（9/16")Exposed Tee Grid 43mm
PeakForm SUPRAFINE XL Main Beam 43mm
PeakForm SUPRAFINE XL Cross Tee 43mm

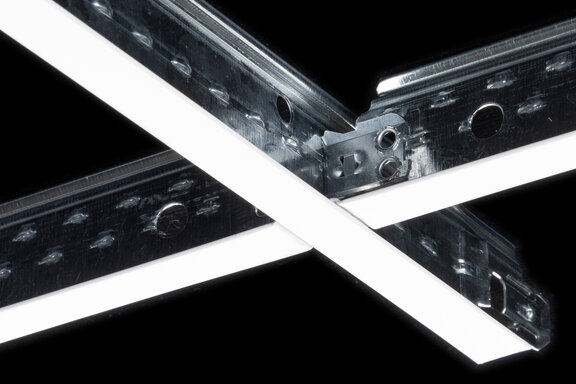

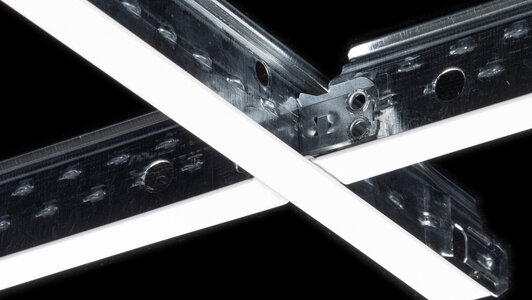

PeakForm SUPRAFINE 32mm Main Beam/Cross Tee

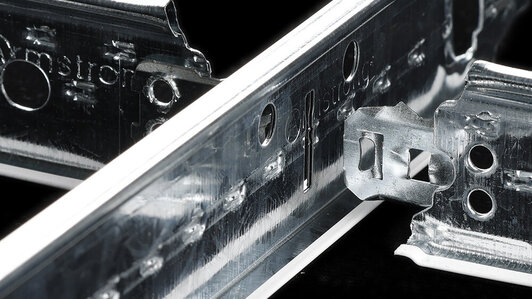

PeakForm SUPRAFINE XL 15mm（9/16")Exposed Tee Grid 32mm
PeakForm SUPRAFINE XL main beam 32mm
PeakForm SUPRAFINE XL Cross Tee 32mm
PeakForm SUPRAFINE 27mm Cross Tee
Angle Molding
Angle Molding
PeakForm 32mm
Systems
Technical Specifications
Features
- PeakForm patented main beam profile for installation with Prelude XL stab-end cross teesThe
- The PeakForm bulb design increases strength and stability for improved performance
- Slots at 100mm centers for more flexibility
- Hot dipped galvanized coating inhibits red rusting better than electrogalvanized, painted or tin plated systems
- The performance of the Armstrong Seismic RXTM Suspen-sion System is based on the specific combination of components and method of installation.
Application Areas
- Offices/Hospitality/Schools/Retails/Entertainment
Physical data
- Material：Double-web hot dipped galvanized steel
- Surface Finish：Baked polyester paint
- Cross Tee / Main Bean Interface：XL-Override
- End Detail：Peakform main beam: Superlock Staked-on clip
- Intermediate duty ID
Performance
Loading
19.76kg/m,ID
Seismic
Yes
Recycled Content
25%
Cleaning
Dry Cloth
