Suspension System
Armstrong PeakForm SILHOUETTE
PeakForm SILHOUETTE 15 XL² is a suspension system designed to create a crisp, clean look in conjunction with Tegular tiles to provide an enhancded aesthetic.
- - Staked-on Clip Cross Tee
- - Main Beam ID (18.82kg/m)
- - Baked Bolt-Slot System
- - 45mm Main Beam Peakform
- - Rotary-stitched
Details & Options

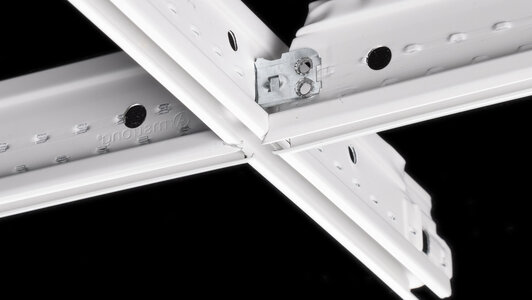

PeakForm SILHOUETTE 45mm Main Beam/Cross Tee
PeakForm SILHOUETTE 45mm Main Beam/Cross Tee

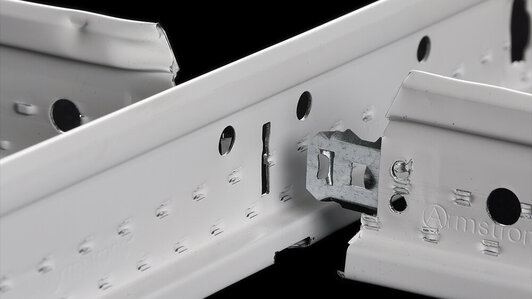

PeakForm SILHOUETT 15mm Bolt-Slot Systeml 45mm
PeakForm SILHOUETT Main Beam 45mm
PeakForm SILHOUETT Cross Tee 45mm

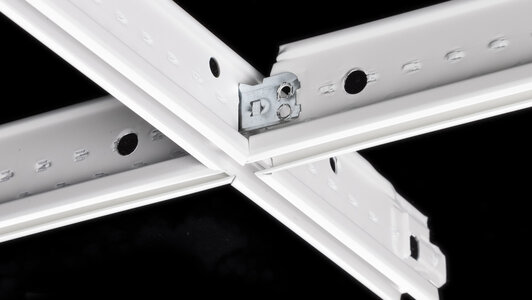

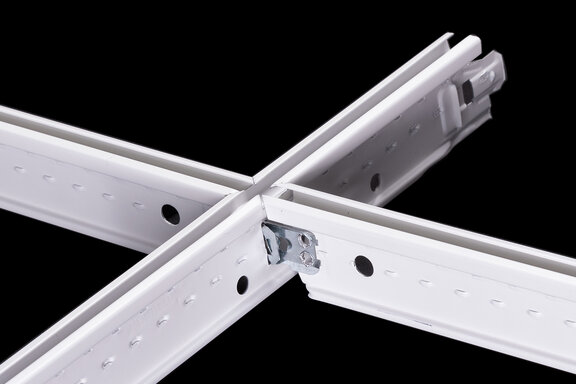

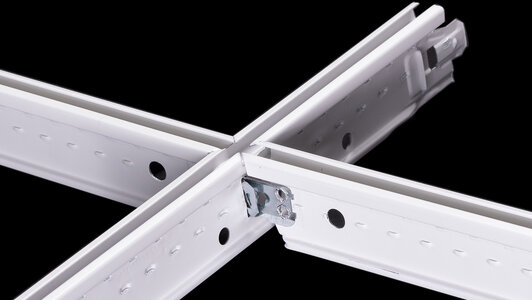

SILHOUETTE 38mm Main Beam/Cross Tee
SILHOUETTE 38mm Main Beam/Cross Tee

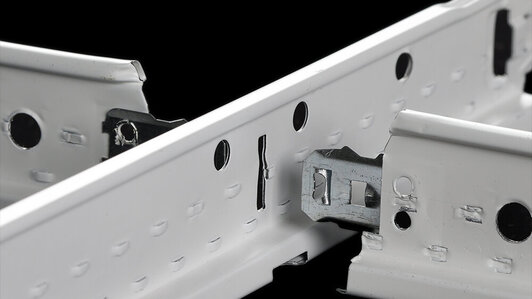

SILHOUETTE 15mm Bolt-Slot System 38mm
SILHOUETTE Main Beam 38mm
SILHOUETTE Cross Tee 38mm
Angle Molding
Angle Molding
Shadow Molding
Shadow Molding
Systems
Technical Specifications
Features
- Rotary-stitched during manufacture by a patented method for additional torsional strength and extra stability during installation; maintains size and shape of reveal when cutting perimeter tees
- PeakForm® patented profile increases strength and stability for improvedperformance during installation
- The performance of the Armstrong Seismic RXTM Suspen-sion System is based on the specific combination of components and method of installation.
- XL staked-on end detail provides secure locked connection
- Choice of black and white reveal
Application Areas
- Offices/Hospitality/Schools/Retails/Entertainment
Physical data
- Material：Double-web hot dipped galvanized steel
- Surface Finish：Baked polyester paint
- Cross Tee / Main Bean Interface：Mitered
- End Detail：Main beam: Coupling/Cross tee: XL
- Intermediate duty ID/Light duty LD
Performance
Loading
18.82 kg/m
Seismic
Yes
Recycled Content
25%
Cleaning
Dry Cloth
