Metal Ceiling Tile
Armstrong MetalWorks Lay-In

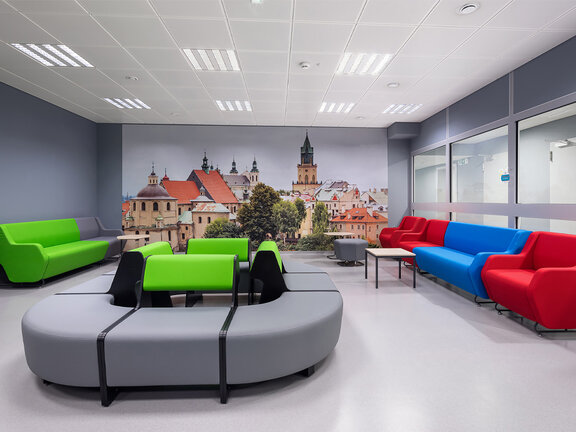

Armstrong MetalWorks Lay-In is a modular metal ceiling system. It provides a contemporary look and offers easy accessibility to plenum space.
Materials & Options
Global White
Global White （Bioguard）
RAL 9003
RAL 9016
RAL 9010
RAL 9006
RAL colors available on request
Wood grain effects available on request
Standard Perforation M10 (16% Open area)
Micro Perforation M9 (9.6% Open area)
Micro Perforation M2 (19.1% Open area)
Extra Micro Perforation M3 (1.5% Open area)
Unperforation M1
600 x 600 mm / 300 x 300 mm
1200 x 300 mm
1200 x 400 mm
1200 x 600 mm
Technical Specifications
Features
- Contemporary appearance
- Cost effective
- Standard grid systems, Simple accessibility
- Good acoustical performance
- Standard range of 5 panel sizes and five finishes
Application areas
- Office
- Healthcare
- Education
- Transport
- Retail
- Foyers
- Corridors
Performance
Sound Absorption
NRC0.70
Fire Reaction
GB8624-2012 China Class A
Weight
Galvanised Steel ≅ 4.04 kg/m²
Aluminium ≅ 5.66kg/m²
Aluminium ≅ 5.66kg/m²
