Suspension System

Armstrong Huiyi SEL 24 Standard Reveal Grid

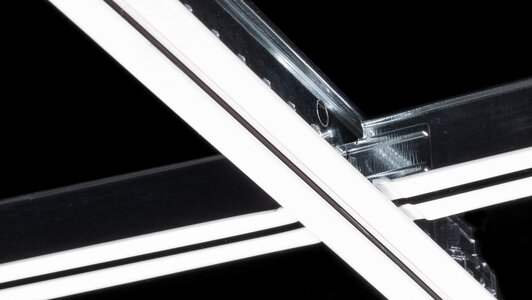

Huiyi SEL 24 suspension system is an econimic and exposed 24mm "tee" grid with 3mm white and black  reveal, suitable for square edge ceiling panels.

  • - Rotary-stitched
Contact us
Available in: China
China
  • China

Details & Options

Huiyi SEL 24 Standard Reveal Grid System
Huiyi SEL 24 Standard Reveal Grid Main Beam
Huiyi SEL 24 Standard Reveal Grid Main Beam
Huiyi SEL 24 Standard Reveal Grid Cross Tee
Huiyi SEL 24 Standard Reveal Grid Cross Tee
Angle molding

Systems

Huiyi SEL 24 Standard Reveal Grid System
Huiyi SEL 24 Standard Reveal Grid System

Technical Specifications



Features

  • Rotary-stitched, for torsional strength and stability
  • Hot dipped galvanized coating inhibits red rusting
  • Choice of black and white reveal

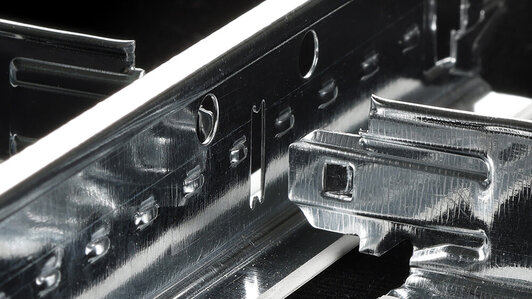

  • Unique connection design for easier installation
  • Accurate grid size for best installation effect

Application Areas

  • Commercial buldings
  • Mass merchandising
  • Offices and conference rooms
  • Education

Physical data

  • Material：Double-web hot dipped galvanized steel
  • Surface Finish：Baked Polyester paint
  • Cross Tee/Main Beam Interface:Overridey
  • End Detail： Main Beam:Intergral Cross Tee:Intergral
  • Exposed tee system
  • Light duty

Performance

Loading
7.6 kg/m
Recycled Content
25%
Cleaning
Dry Cloth
