Metal Ceiling Tile

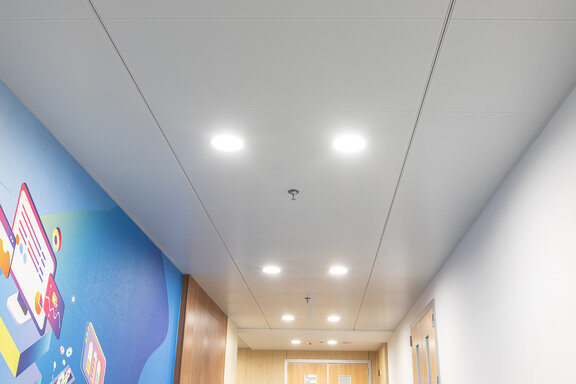

Armstrong B-H315 Sihouette Hook-on System
BH 315 Sihouette Hook-on system transform quickly and easily by innovated Silute grid, unique hook on system ensures quicky disassembling and save installation clearance
Materials & Options
Global White
Global White（Bioguard）
RAL 9003
RAL 9016
RAL 9010
RAL 9006
RAL colors available on request
Wood grain effects available on request
Unperforation M1
Standard Perforation M10 (16% Open area)
Micro Perforation M9 (9.6% Open area)
Micro Perforation M2 (19.1% Open area)
Extra Micro Perforation M11 (1.5% Open area)
800 x 800 mm / 1200 x 1200 mm
600 x 1350 mm
600 x 1500 mm
800 x 1350 mm
800 x 1500 mm
Technical Specifications
Features
- Unique hook on system ensures quicky disassembling and save installation clearance
- Multi-size panels match well with building models
- Sihouette design enhances interior straight line decoration effectknaufceilingsolutions.
Customer Value
- Each panel can be opened independently and effectively save installation space in max.60mm
- Multi-size of panels fix different building modules well and create flat and ordered looks
- Silhouette hook-on grid ensure suspension systems tabilty and effect on the linear alignments
Performance
Sound Absorption
NRC0.70
Fire Reaction
GB8624-2012 Glass A
Weight
Galvanised Steel ≅ 7.12 kg/m²
Aluminium ≅ 12.21 kg/m²
Aluminium ≅ 12.21 kg/m²
Humidity Resistance
Up to 99% RH
Recycled Content
Up to 30%
